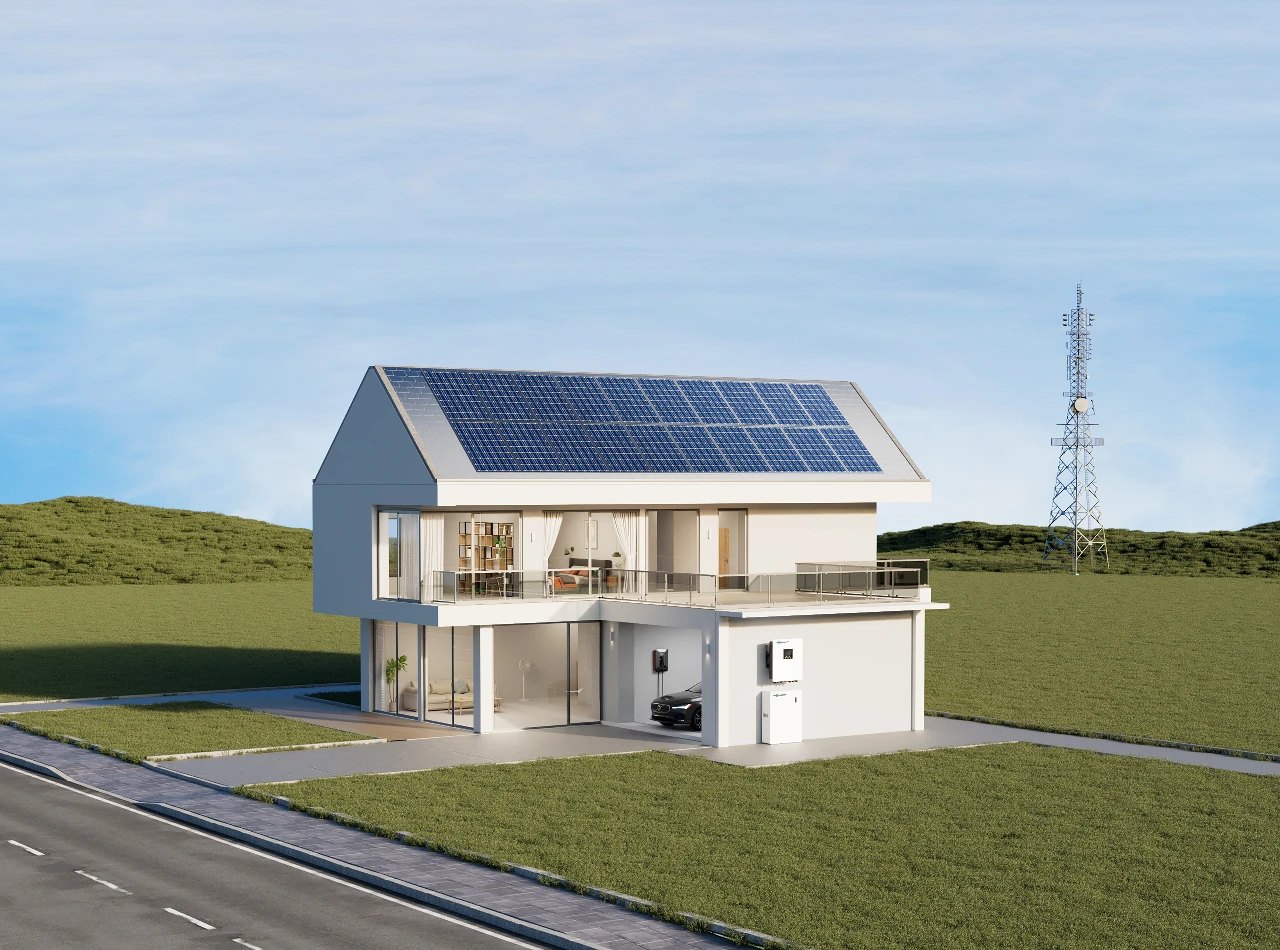

LuxPower (Luxpowertek) SNA PRO-EU 5K
Official manufacturer EU verified Sept. 22, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Identity
| brand | LuxPower (Luxpowertek) |
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | PRO |
| manufacturer | LuxPower (Luxpowertek) |
| manufacturer_key | luxpower |
| market_version | EU (EN datasheet SNA-PRO-EU-3-6.5K-Datasheet-260410) |
| model | SNA PRO-EU 5K |
| model_key | snaproeu5k |
| mpn | — |
| product_family | ECO HYBRID |
| product_status | active |
| region | EU |
| release_year | — |
| series | SNA PRO-EU |
| sku | — |
Electrical
| ac_connection | — |
| ac_voltage_range | 184 - 276 V |
| battery_capacity_range_kwh | — |
| battery_communication | CAN / RS485 |
| battery_max_charge_current_a | 110 |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | 110 |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | 48 |
| battery_nominal_voltage_v |
48
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| battery_supported |
True
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| battery_type | Lithium-ion / Lead-Acid |
| battery_voltage_max_v |
60
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| battery_voltage_min_v |
40
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| battery_voltage_range_v | 40 - 60 V |
| eps_peak_power | 10000 W, 5 s |
| eps_phase | single |
| eps_rated_power_va | 5000 |
| eps_switchover_time_ms | < 10 (single unit) / < 20 (parallel) |
| eps_voltage | — |
| european_efficiency_pct | 97.5 |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | 5000 |
| max_ac_current_a |
21.7
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| max_ac_input_power_w | 10000 |
| max_ac_power_w |
5000
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| max_apparent_power_va | 5000 |
| max_backfeed_current_a | — |
| max_charge_current_a |
110
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| max_dc_input_power_w | — |
| max_dc_voltage_v | 400 |
| max_discharge_current_a |
110
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| max_efficiency_pct | 97.5 |
| max_input_current_per_mppt_a | 25 disputed |
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
500
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| max_short_circuit_current_per_mppt_a | 25 |
| mppt_efficiency_pct | 99.0 |
| mppt_topology_notation | "'Number of independent MPPT inputs: 2'; no PV-string-count row is printed" |
| mppt_voltage_max_v |
400
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| mppt_voltage_min_v |
80
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| mppt_voltage_range_v | 80 - 400 V |
| night_self_consumption_w | — |
| nominal_ac_voltage | 230 V |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | 50 / 60 |
| nominal_grid_voltage_v |
230
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| number_of_mppt |
2
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| parallel_capability | Up to 16 units in parallel |
| phase_count |
1
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| power_factor_range | 0.99 |
| rated_ac_power_w |
5000
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| rated_mppt_voltage_range_v | 80 - 400 V |
| startup_voltage_v |
80
ECO HYBRID SNA PRO-EU 3-6.5K (Single-Phase) Datasheet
|
| strings_per_mppt | — |
| thd_pct | < 5 |
Physical / mechanical
| ac_terminal | — |
| cooling | Smart Cooling |
| dc_connector | — |
| depth_mm | 187 |
| dimensions_mm | 384 x 434 x 187 (W x H x D) |
| display | LCD + LED |
| enclosure_material | — |
| height_mm | 434 |
| mounting | — |
| noise_db | — |
| weight_kg | 16.95 |
| width_mm | 384 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | 4000 (power derating above 2000) |
| operating_temperature_c | -25 to +60 (derating above +45) |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 5 - 95 |
| storage_temperature_c | -15 to +60 |
Interfaces & connectors
| app | — |
| communication | ['LCD + LED', 'RS485', 'Wi-Fi', 'CAN'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | — |
| protocols | [] |
Protection
| ac_short_circuit | AC short-circuit current protection |
| anti_islanding | Anti-islanding protection |
| arc_fault | AFCI - optional (product page) |
| dc_switch | PV switch |
| ground_fault | Ground fault monitoring / GFCI |
| insulation_monitoring | PV insulation resistance measurement (product page) |
| over_current | Over current / over voltage protection |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | PV reverse polarity protection |
| surge_protection_ac | AC/DC surge protection |
| surge_protection_dc | AC/DC surge protection |
Certifications
| standards | ['EN 61000', 'EN 62109-1', 'EN 62109-2', 'NRS097', 'MEA/PEA', 'IEC 62116', 'IEC 61727'] |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | 5 |
Documents
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
SNA PRO User Manual 26.03.05 — located, not retrieved
rev 26.03.05
Recorded conflicts
electrical.max_input_current_per_mppt_a Review required
25 — stored value
[25, 25] — Max. PV input current per MPPT (A): 25/25 — axis: MPPT
Detected during import v1-freeze-2026-09-batch09
max_pv_input_voltage_v Resolved — accepted incoming value
400 — value currently stored in ANMA
500 — https://luxpowertek.com/wp-content/uploads/2026/04/SNA-PRO-EU-3-6.5K-Datasheet-260410.pdf
document-revision
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Max PV input power | 15000(7500/7500) |
| Max short-circuit current per MPP tracker | 90 |
| Max. PV input current per MPPT | pass 1 read 25 A; pass 2 read 20 A / 20 A |
| Max. PV input power | pass 1 read 12500 W; pass 2 read 15000 W (7500/7500) |
| Max. PV input voltage | pass 1 read 600 V; pass 2 read 500 V |
| Max. efficiency / Max. EU efficiency | pass 1 labelled the 97.5 % row 'Max Efficiency'; pass 2 labelled it 'Max. EU efficiency' |
| Nominal DC voltage | 48 |
| battery.communication | CAN / RS485 |
| battery.max_charge_current_a | 110 |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | 110 |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | 48 |
| withheld:pv.mppt_topology_notation | "'Number of independent MPPT inputs: 2'; no PV-string-count row is printed" |
