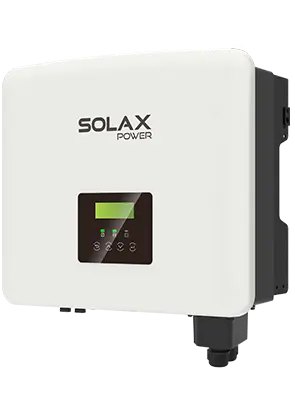

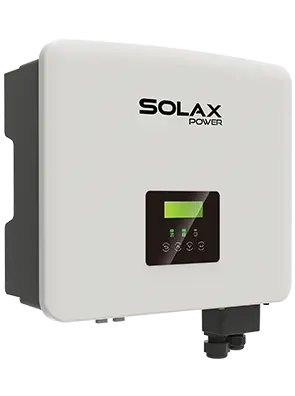

SolaX Power X1-HYBRID-3.7-D
Official manufacturer GLOBAL verified Sept. 22, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Identity
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | G4 |
| manufacturer | SolaX Power |
| market_version | EU / global single-phase edition; the product page prints rated AC voltage 1/N/PE, 220/230/240 V |
| model | X1-HYBRID-3.7-D |
| mpn | — |
| product_family | X1-Hybrid |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | X1-Hybrid G4 |
| sku | — |
Electrical
| ac_connection | — |
| ac_voltage_range | — |
| battery_capacity_range_kwh | — |
| battery_chemistry_documented |
Lithium / Lead-acid
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| battery_communication | — |
| battery_max_charge_current_a | 13 |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_supported |
True
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| battery_type | Li-ion / Lead-acid |
| battery_voltage_max_v |
480
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| battery_voltage_min_v |
80
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| battery_voltage_range_v | — |
| eps_peak_power | 6000 VA, 10 s |
| eps_phase | single-phase (1 / N / PE) |
| eps_rated_power_va | 3680 |
| eps_switchover_time_ms | < 10 ms |
| eps_voltage | — |
| euro_efficiency_pct | 97.0 |
| european_efficiency_pct | — |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | — |
| max_ac_apparent_power_va |
3680
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_ac_current_a |
16.0
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_apparent_power_va | — |
| max_backfeed_current_a | — |
| max_charge_current_a |
30
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_dc_input_power_w | 7400 |
| max_dc_voltage_v | — |
| max_discharge_current_a |
30
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_efficiency_pct | — |
| max_input_current_per_mppt_a | 16 A / 16 A disputed |
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
600
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_recommended_pv_array_power_kwp |
7.4
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| max_short_circuit_current_per_mppt_a | — |
| mppt_count | 2 |
| mppt_efficiency_pct | — |
| mppt_voltage_max_v |
550
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| mppt_voltage_min_v |
70
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| mppt_voltage_range_v | 70 ~ 550 V |
| night_self_consumption_w | — |
| nominal_ac_voltage | 1 / N / PE, 220 / 230 / 240 V |
| nominal_ac_voltage_v | 230.0 |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | — |
| nominal_grid_voltage_v |
230
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| number_of_mppt |
2
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| number_of_pv_inputs |
2
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| parallel_capability | — |
| phase_count |
1
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| power_factor_range | — |
| rated_ac_power_w |
3680
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| rated_input_voltage_v |
360
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| rated_mppt_voltage_range_v | — |
| startup_voltage_v |
90
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| strings_per_mppt | 2 (1/1) |
| strings_per_mppt_distribution |
[1, 1]
SolaX X1-HYBRID G4 Datasheet EN V2.9.1 (650.00009.00)
|
| thd_pct | — |
| transfer_time_ms | 20.0 |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | — |
| depth_mm | 181 |
| dimensions_mm | 482 x 417 x 181 |
| display | — |
| enclosure_material | — |
| height_mm | 417 |
| mounting | — |
| noise_db | — |
| weight_kg | 25 |
| width_mm | 482 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP65 |
| ip_rating | IP65 |
| max_altitude_m | — |
| operating_temperature_c | -35 to +60 (derating above +45) |
| operating_temperature_max_c | 60.0 |
| operating_temperature_min_c | -25.0 |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | — |
| storage_temperature_c | — |
Interfaces & connectors
| app | — |
| communication | [] |
| dry_contact | — |
| meter_interface | SolaX authorized DDSU666 and DDSU666-CT (series user manual) |
| monitoring_portal | — |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | — |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
| warranty_years | 10 |
Documents
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
SolaX X1-HYBRID G4 Datasheet EN (V3.0, 20250427) — located, not retrieved
rev UNKNOWN
Recorded conflicts
electrical.max_input_current_per_mppt_a Review required
16 A / 16 A — stored value
[16, 16] — Max. input current per MPPT (MPPT1/2) | 16 A / 16 A
Detected during import v1-freeze-2026-09-batch10
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Comunicaciones (ES datasheet V2.4) | CT/Medidor (opcional), Control externo RS485, Wifi de bolsillo (opcional: LAN/4G de bolsillo), DRM, actualizacion USB, NTC (opcional) |
| Consumo interno (por la noche) (ES datasheet V2.4) | <17W en espera, <2,7W en ralenti |
| Corriente max. de cortocircuito (FV1/FV2) [A] (ES datasheet V2.4) | 20/20 |
| Corriente maxima continua de carga/descarga [A] (ES datasheet V2.4) | 13 / 21,7 / 26,1 / 32,6 across the 3.0 / 3.7 / 6.0 / 7.5 columns |
| Eficiencia maxima [%] / Eficiencia Euro [%] (ES datasheet V2.4) | 97,6 / 97,0 |
| Manual validity list (series user manual V3.0) | X1-Hybrid-3.0-D/M; X1-Hybrid-3.7-D/M; X1-Hybrid-5.0-D/M, X1-Hybrid-5.0K-D; X1-Hybrid-6.0-D/M; X1-Hybrid-7.5-D/M |
| Normas de seguridad / EMC / codigos de red (ES datasheet V2.4) | EN/IEC62109-1/-2; EN61000-6-1/2/3/4; EN61000-3-2/3/11/12; VDE4105, G99, G98, AS4777, EN50549, CEI 0-21, IEC61727, RD1699, NRS 097-2-1, PEA/MEA, VFR2019, C10/11 |
| Potencia max. aparente de salida de CA [VA] (ES datasheet V2.4) | 4500 / 5500 / 9000 / 10000 across the 3.0 / 3.7 / 6.0 / 7.5 columns |
| Potencia max. del conjunto FV [Wp] (ES datasheet V2.4), X1-HYBRID-3.7-D column | 9200 Wp |
| Temperatura de almacenamiento / Altitud maxima / Humedad relativa (ES datasheet V2.4) | -40~+65 C / <3000 m / 0~100 % |
| Tension max. de entrada FV [V] (ES datasheet V2.4) | 600 |
| battery.communication | UNKNOWN |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| documented_relationship:inverter_battery | {"to_manufacturer": "SolaX Power", "to_model": "T-BAT H 5.8 (with HV11550 / HV10230 modules)", "relationship_type": "inverter_battery", "match_level": "series", "status": "compatible", "source": "X1-Hybrid G4 series user manual (EN) Version 3.0, 2024-08-08, section 8.5 Battery Power Cable Connection", "source_url": "https://www.solaxpower.com/uploads/file/solax-320101081103-x1-hybrid-g4-series-user-manual-en.pdf", "source_page": "Section 8.5", "confidence": "officially-verified", "required_accessories": "UNKNOWN", "required_firmware": "UNKNOWN", "region": "EU/global", "notes": "Printed verbatim in the manual's battery power cable connection section as a supported battery for this inverter series. Series-level, not a per-rating approval. ANMA stores 'Triple Power T-BAT-SYS-HV 5.8 (T58)'; the manual's spelling differs and no document I read equates the two, so the endpoint is left as the m |
| identity.region_as_printed | EU/global |
