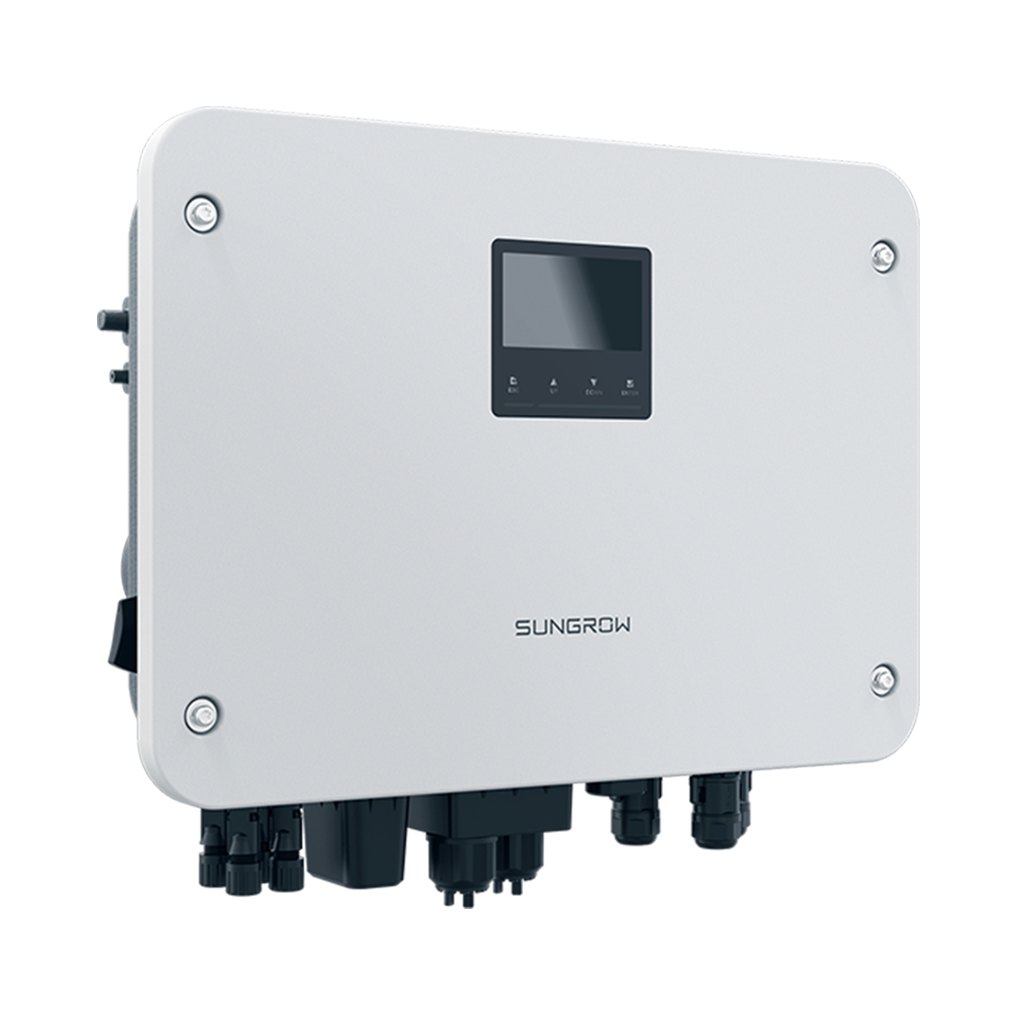

Sungrow MG10RL
Official manufacturer UNKNOWN verified Sept. 14, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Identity
| brand | Sungrow |
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| manufacturer_key | sungrow |
| market_version | APAC / MEA (grid compliance list names NRS 097-2-1, MEA, PEA, DEWA) |
| model | MG10RL |
| model_key | mg10rl |
| mpn | — |
| product_family | MG Series residential hybrid inverter |
| product_status | active |
| region | — |
| release_year | — |
| series | MGRL |
| sku | — |
Electrical
| ac_connection | 1 / 1 (grid connection type / phase) |
| ac_voltage_range | 154 V – 276 V |
| battery_capacity_range_kwh | — |
| battery_communication | CAN |
| battery_max_charge_current_a | — |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_type | Li-ion battery |
| battery_voltage_range_v | 40 V – 60 V |
| eps_peak_power | 2 times of rated power, 10 s |
| eps_phase | 1 |
| eps_rated_power_va | 10000 |
| eps_switchover_time_ms | 4 |
| eps_voltage | 220 V / 230 V / 240 V |
| european_efficiency_pct | 96.7 |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | 10000 |
| max_ac_current_a | 45.5 |
| max_apparent_power_va | 10000 |
| max_backfeed_current_a | — |
| max_dc_input_power_w | 16000 |
| max_dc_voltage_v | 500 |
| max_efficiency_pct | 97.6 |
| max_input_current_per_mppt_a | 25 |
| max_output_fault_current_a | — |
| max_short_circuit_current_per_mppt_a | 25 |
| mppt_efficiency_pct | — |
| mppt_topology_notation | "No. of independent MPP trackers 3 / No. of PV strings per MPPT 1 / 1 / 1" |
| mppt_voltage_range_v | 40 V – 425 V |
| night_self_consumption_w | — |
| nominal_ac_voltage | 220 V / 230 V / 240 V |
| nominal_dc_voltage_v | 360 |
| nominal_frequency_hz | 50 Hz / 60 Hz |
| number_of_mppt | 3 |
| parallel_capability | — |
| phase_count | 1 |
| power_factor_range | > 0.99 at default value at rated power / 0.8 leading to 0.8 lagging |
| rated_ac_power_w | 10000 |
| rated_mppt_voltage_range_v | 230–425 V (MPP voltage range for nominal power) |
| startup_voltage_v | 50 |
| strings_per_mppt | 1 / 1 / 1 |
| thd_pct | < 3 % |
Physical / mechanical
| ac_terminal | — |
| cooling | Natural convection/Fan cooling |
| dc_connector | — |
| depth_mm | 250 |
| dimensions_mm | 552 mm * 448 mm * 250 mm |
| display | LCD digital touchable display & LED indicator |
| enclosure_material | — |
| height_mm | 448 |
| mounting | — |
| noise_db | ≤ 45 dB(A) |
| weight_kg | ≤ 25 kg |
| width_mm | 552 |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP65 |
| max_altitude_m | 2000 |
| operating_temperature_c | -25 ℃ to 60 ℃ |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | 0% – 95% |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | ['CAN', 'RS485', 'Ethernet (optional)', 'WLAN (optional)'] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | AFCI Protection (product page); 'Optional' in the Version 3 datasheet |
| dc_switch | Yes |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | Yes (AC/DC surge protection) |
| surge_protection_dc | Yes (AC/DC surge protection) |
Certifications
| standards | ['IEC 62109-1/-2', 'IEC/EN 61000-6-1/-3', 'IEC 62116', 'IEC 61727', 'NRS 097-2-1', 'MEA', 'PEA', 'DEWA'] |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Documents
quick-guide
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL Quick Installation Guide — located, not retrieved
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL User Manual — located, not retrieved
rev UNKNOWN
Recorded conflicts
battery.max_charge_current_a / battery.max_discharge_current_a Review required
120 A / 120 A — MG5RL/MG6RL/MG8RL/MG10RL+MGL060 datasheet, Version 3 APAC MEA
190 A / 190 A — MG8RL / MG10RL datasheet, Version 6 APAC MEA
electrical.max_input_current_per_mppt_a Review required
20 — MG5RL/MG6RL/MG8RL/MG10RL+MGL060 datasheet, Version 3 APAC MEA
25 — MG8RL / MG10RL datasheet, Version 6 APAC MEA
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| MG model-specific datasheet, row 'Max. DC short-circuit current' | read once as '25 A' and once as '50 A ( 25 A / 25 A )' |
| Max. PV input current (total, per-MPPT breakdown in brackets) | 75 A (25 A / 25 A / 25 A) |
| Max. PV input power (Version 3 datasheet) | 16000 Wp |
| Topology (Version 3 datasheet) | Non-isolated (MG5RL/MG6RL) / Isolated (MG8RL/MG10RL) |
| Whole-home backup bypass switch (MG8RL-MG10RL product page) | Whole-home backup with 40/63A bypass switch |
| battery.communication | CAN |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| identity.region_as_printed | APAC / MEA (both fetched datasheets are the 'APAC MEA' edition) |
| withheld:pv.mppt_topology_notation | "No. of independent MPP trackers 3 / No. of PV strings per MPPT 1 / 1 / 1" |
