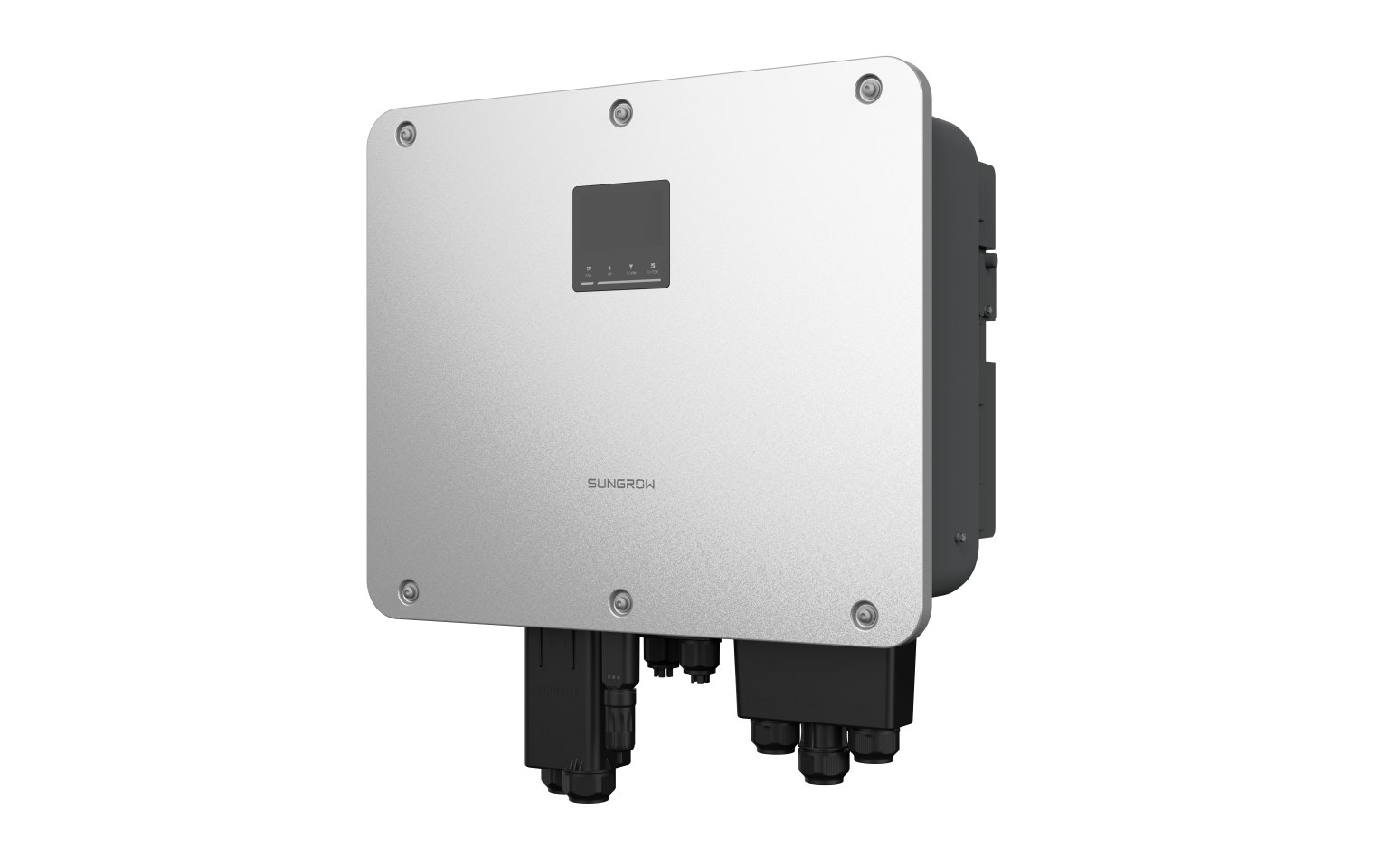

Sungrow MG10TL
Official manufacturer GLOBAL verified Sept. 22, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Identity
| brand | Sungrow |
| category | inverters |
| ean | — |
| firmware | {'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'} |
| generation | — |
| manufacturer | Sungrow |
| manufacturer_key | sungrow |
| market_version | — |
| model | MG10TL |
| model_key | mg10tl |
| mpn | — |
| product_family | MG Series three-phase hybrid inverter |
| product_status | active |
| region | GLOBAL |
| release_year | — |
| series | MGTL |
| sku | — |
Electrical
| ac_connection | — |
| ac_voltage_range | — |
| battery_capacity_range_kwh | — |
| battery_communication | — |
| battery_max_charge_current_a | 330 |
| battery_max_charge_power_w | — |
| battery_max_discharge_current_a | — |
| battery_max_discharge_power_w | — |
| battery_nominal_battery_voltage_v | — |
| battery_supported |
True
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_type | — |
| battery_voltage_max_v |
60
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_voltage_min_v |
40
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| battery_voltage_range_v | — |
| eps_peak_power | — |
| eps_phase | — |
| eps_rated_power_va | — |
| eps_switchover_time_ms | 0 |
| eps_voltage | — |
| european_efficiency_pct | — |
| external_transfer_switch_required | — |
| frequency_range_hz | — |
| inrush_current | — |
| max_ac_active_power_w | — |
| max_ac_current_a | — |
| max_apparent_power_va | — |
| max_backfeed_current_a | — |
| max_dc_input_power_w | — |
| max_dc_voltage_v | 1000 |
| max_efficiency_pct | 98 |
| max_input_current_per_mppt_a |
[20, 20, 20]
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| max_output_fault_current_a | — |
| max_pv_input_voltage_v |
1000
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| max_short_circuit_current_per_mppt_a | — |
| mppt_efficiency_pct | — |
| mppt_voltage_max_v |
950
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| mppt_voltage_min_v |
90
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| mppt_voltage_range_v | — |
| night_self_consumption_w | — |
| nominal_ac_voltage | 400 V |
| nominal_dc_voltage_v | — |
| nominal_frequency_hz | — |
| nominal_grid_voltage_v |
3/N/PE, 220/380 V; 230/400 V; 240/415 V
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| number_of_mppt |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| number_of_pv_inputs |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| official_datasheet_url |
https://info-support.sungrowpower.com/product-material/8c54a794-8e0f-4341-8de4-019e4ba8596e.pdf
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| official_manual_url |
https://info-support.sungrowpower.com/product-material/311788fc-d7f9-4366-8673-0672d658baa3.pdf
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| parallel_capability | — |
| phase_count |
3
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| power_factor_range | — |
| rated_ac_power_w | 10000 |
| rated_mppt_voltage_range_v | — |
| rated_pv_input_voltage_v |
650
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| startup_voltage_v |
100
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| strings_per_mppt | — |
| strings_per_mppt_distribution |
[1, 1, 1]
Sungrow MG10TL / MG12TL / MG15TL datasheet, Version 4 MEA APAC
|
| thd_pct | — |
Physical / mechanical
| ac_terminal | — |
| cooling | — |
| dc_connector | — |
| depth_mm | — |
| dimensions_mm | — |
| display | 4.3 Inch Touchscreen |
| enclosure_material | — |
| height_mm | — |
| mounting | — |
| noise_db | 35 dB(A) |
| weight_kg | — |
| width_mm | — |
Installation
| cable_requirements | — |
| commissioning | — |
| installation_angle | — |
| mounting_clearances | — |
| torque | — |
Environment
| ingress_protection | IP66 |
| max_altitude_m | — |
| operating_temperature_c | — |
| pollution_degree | — |
| protective_class | — |
| relative_humidity_pct | — |
| storage_temperature_c | — |
Interfaces & connectors
| app | iSolarCloud |
| communication | [] |
| dry_contact | — |
| meter_interface | — |
| monitoring_portal | iSolarCloud |
| protocols | [] |
Protection
| anti_islanding | — |
| arc_fault | AFCI 3.0R Arc-fault Detection |
| dc_switch | — |
| insulation_monitoring | — |
| overvoltage_category | — |
| rcmu | — |
| reverse_polarity | — |
| surge_protection_ac | — |
| surge_protection_dc | — |
Warranty & service
| conditions | — |
| extension_options | — |
| standard_years | — |
Documents
quick-installation-guide
Sungrow MG10/12/15TL Quick Installation Guide
Recorded conflicts
max_charge_current_a Resolved — regional/revision difference
265 —
220 —
rated_ac_power_w Resolved — regional/revision difference
12000 —
10000 —
max_charge_current_a Review required
265 —
220 —
rated_ac_power_w Review required
12000 —
10000 —
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Charge / discharge current | up to 330A (MG10/12/15TL) |
| Corrosion class | C5 |
| PV oversizing | Up to 250% |
| PV string input current | Up to 20A |
| Rated AC Output Power (headline) | 10-25kW |
| Unbalanced load capability | up to 200% |
| battery.communication | UNKNOWN |
| battery.max_charge_current_a | UNKNOWN |
| battery.max_charge_power_w | UNKNOWN |
| battery.max_discharge_current_a | UNKNOWN |
| battery.max_discharge_power_w | UNKNOWN |
| battery.nominal_battery_voltage_v | UNKNOWN |
| identity.region_as_printed | GLOBAL (product page; Sungrow markets the MGTL series in Southeast Asia, Africa and Latin America) |
