Knowledge Base ›
Inverters
Official manufacturer
UNKNOWN
verified Sept. 14, 2026
Unresolved safety-relevant conflict

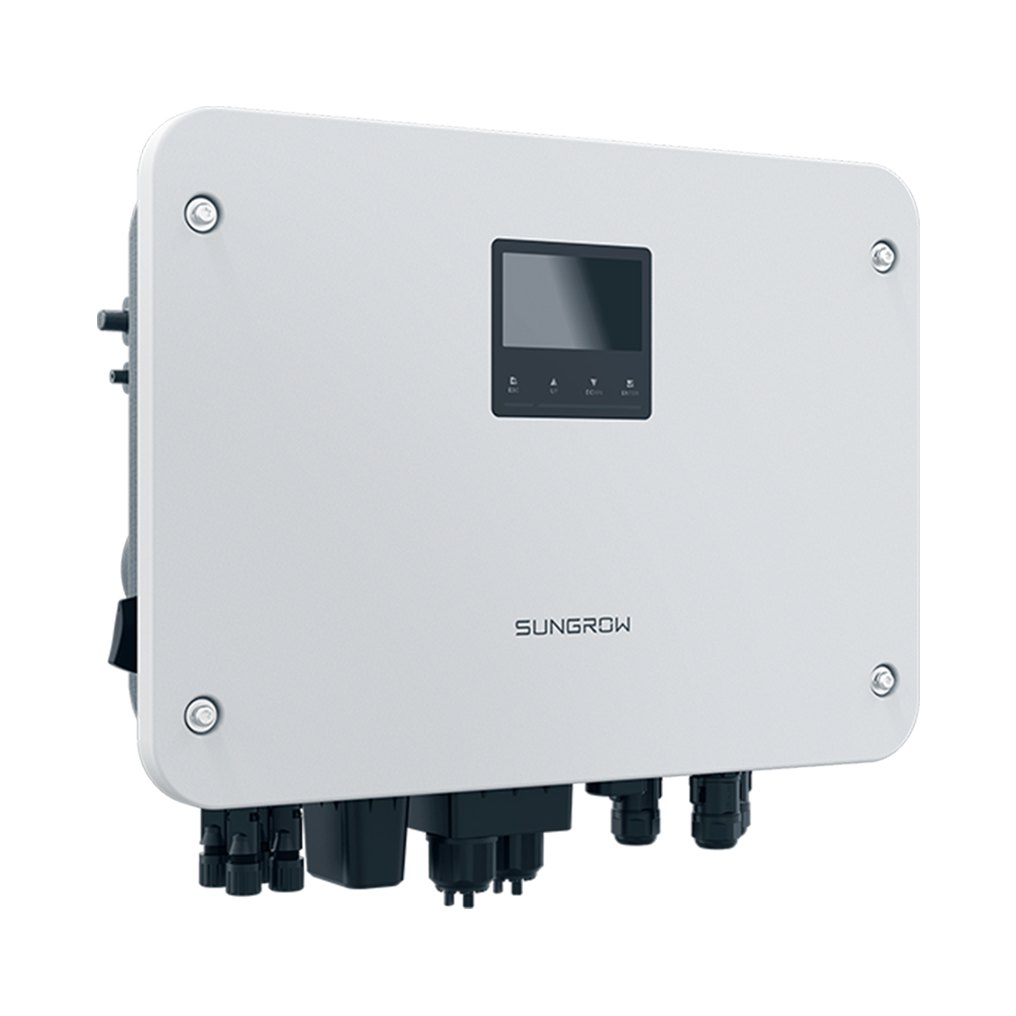

PRODUCT PHOTO · Sungrow
PRODUCT PHOTO · Sungrow
Identity
brand
Sungrow
category
inverters
ean
—
firmware
{'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'}
generation
—
manufacturer
Sungrow
manufacturer_key
sungrow
market_version
APAC / MEA (grid compliance list names NRS 097-2-1, MEA, PEA, DEWA)
model
MG8RL
model_key
mg8rl
mpn
—
product_family
MG Series residential hybrid inverter
product_status
active
region
—
release_year
—
series
MGRL
sku
—
Electrical
ac_connection
1 / 1 (grid connection type / phase)
ac_voltage_range
154 V – 276 V
battery_capacity_range_kwh
—
battery_communication
CAN
battery_max_charge_current_a
—
battery_max_charge_power_w
—
battery_max_discharge_current_a
—
battery_max_discharge_power_w
—
battery_nominal_battery_voltage_v
—
battery_type
Li-ion battery
battery_voltage_range_v
40 V – 60 V
eps_peak_power
2 times of rated power, 10 s
eps_phase
1
eps_rated_power_va
8000
eps_switchover_time_ms
4
eps_voltage
220 V / 230 V / 240 V
european_efficiency_pct
96.7
external_transfer_switch_required
—
frequency_range_hz
—
inrush_current
—
max_ac_active_power_w
8000
max_ac_current_a
36.4
max_apparent_power_va
8000
max_backfeed_current_a
—
max_dc_input_power_w
12800
max_dc_voltage_v
500
max_efficiency_pct
97.6
max_input_current_per_mppt_a
20
max_output_fault_current_a
—
max_short_circuit_current_per_mppt_a
25
mppt_efficiency_pct
—
mppt_topology_notation
"No. of independent MPP trackers 3 / No. of PV strings per MPPT 1 / 1 / 1"
mppt_voltage_range_v
40 V – 425 V
night_self_consumption_w
—
nominal_ac_voltage
220 V / 230 V / 240 V
nominal_dc_voltage_v
360
nominal_frequency_hz
50 Hz / 60 Hz
number_of_mppt
3
parallel_capability
—
phase_count
1
power_factor_range
> 0.99 at default value at rated power / 0.8 leading to 0.8 lagging
rated_ac_power_w
8000
rated_mppt_voltage_range_v
230–425 V (MPP voltage range for nominal power)
startup_voltage_v
50
strings_per_mppt
1 / 1 / 1
thd_pct
< 3 %
Physical / mechanical
ac_terminal
—
cooling
Natural convection/Fan cooling
dc_connector
—
depth_mm
250
dimensions_mm
552 mm * 448 mm * 250 mm
display
LCD digital touchable display & LED indicator
enclosure_material
—
height_mm
448
mounting
—
noise_db
≤ 45 dB(A)
weight_kg
≤ 25 kg
width_mm
552
Installation
cable_requirements
—
commissioning
—
installation_angle
—
mounting_clearances
—
torque
—
Environment
ingress_protection
IP65
max_altitude_m
2000
operating_temperature_c
-25 ℃ to 60 ℃
pollution_degree
—
protective_class
—
relative_humidity_pct
0% – 95%
storage_temperature_c
—
Interfaces & connectors
app
iSolarCloud
communication
['CAN', 'RS485', 'Ethernet (optional)', 'WLAN (optional)']
dry_contact
—
meter_interface
—
monitoring_portal
iSolarCloud
protocols
[]
Protection
anti_islanding
—
arc_fault
AFCI Protection (product page); 'Optional' in the Version 3 datasheet
dc_switch
Yes
insulation_monitoring
—
overvoltage_category
—
rcmu
—
reverse_polarity
—
surge_protection_ac
Yes (AC/DC surge protection)
surge_protection_dc
Yes (AC/DC surge protection)
Certifications
standards
['IEC 62109-1/-2', 'IEC/EN 61000-6-1/-3', 'IEC 62116', 'IEC 61727', 'NRS 097-2-1', 'MEA', 'PEA', 'DEWA']
Warranty & service
conditions
—
extension_options
—
standard_years
—
Documents
quick-guide
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL Quick Installation Guide — located, not retrieved
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
MG5/6/8/10/12RL User Manual — located, not retrieved
rev UNKNOWN
Recorded conflicts
battery.max_charge_current_a / battery.max_discharge_current_a Review required
120 A / 120 A — MG5RL/MG6RL/MG8RL/MG10RL+MGL060 datasheet, Version 3 APAC MEA
190 A / 190 A — MG8RL / MG10RL datasheet, Version 6 APAC MEA
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
MG model-specific datasheet, row 'Max. DC short-circuit current' read once as '25 A' and once as '50 A ( 25 A / 25 A )' Max. PV input current (total, per-MPPT breakdown in brackets) 60 A (20 A / 20 A / 20 A) Max. PV input power (Version 3 datasheet) 12000 Wp Topology (Version 3 datasheet) Non-isolated (MG5RL/MG6RL) / Isolated (MG8RL/MG10RL) Whole-home backup bypass switch (MG8RL-MG10RL product page) Whole-home backup with 40/63A bypass switch battery.communication CAN battery.max_charge_current_a UNKNOWN battery.max_charge_power_w UNKNOWN battery.max_discharge_current_a UNKNOWN battery.max_discharge_power_w UNKNOWN battery.nominal_battery_voltage_v UNKNOWN identity.region_as_printed APAC / MEA (both fetched datasheets are the 'APAC MEA' edition) withheld:pv.mppt_topology_notation "No. of independent MPP trackers 3 / No. of PV strings per MPPT 1 / 1 / 1"
