Victron Energy EasySolar-II 48/5000/70-50 MPPT 250/100 GX
Official manufacturer EU / 230 V verified Sept. 1, 2026
.png)
EasySolar-II GX product page - 48V 5000VA front view
.png)

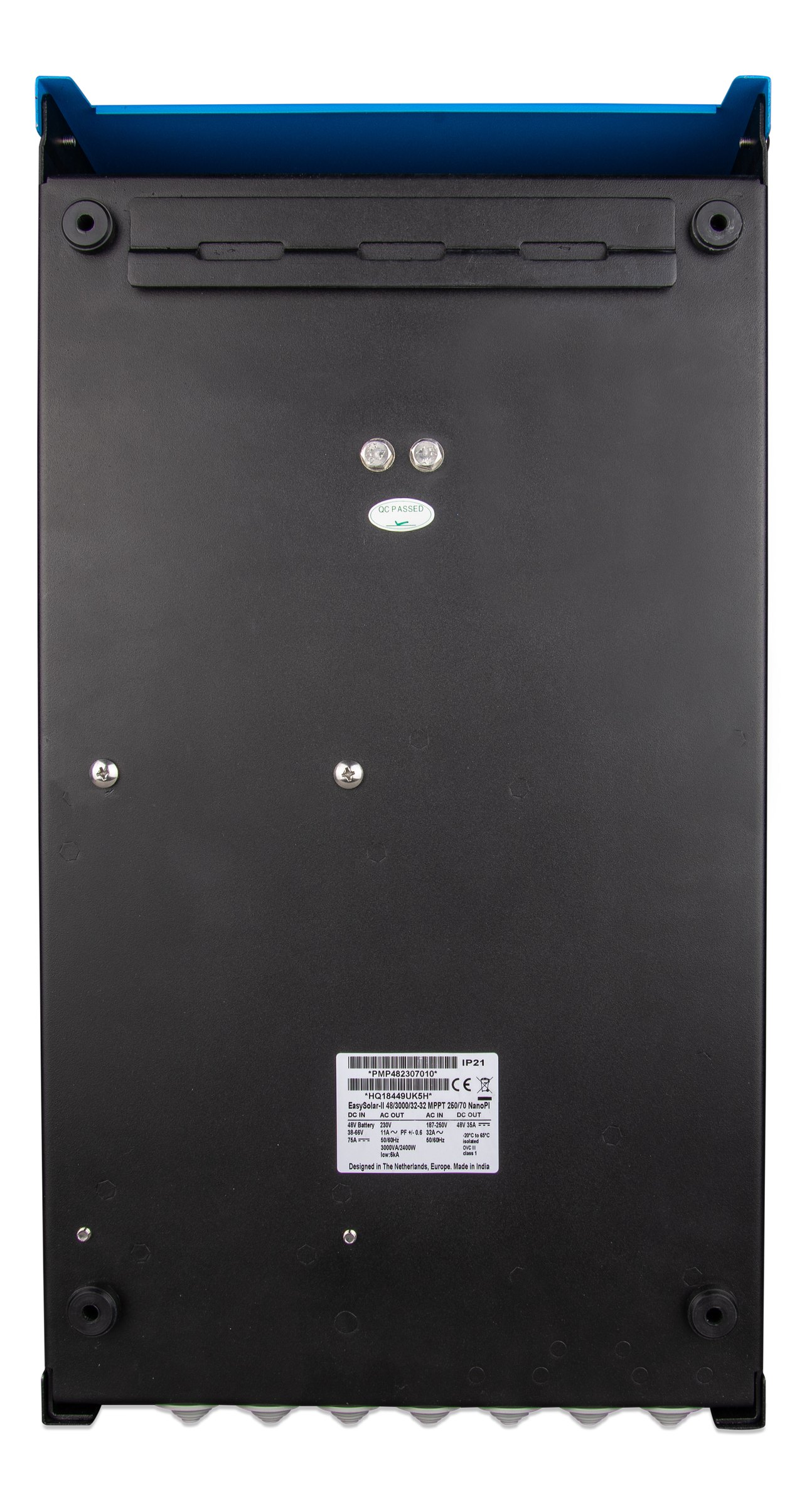

EasySolar-II GX rear view (48V 3000VA variant)
.png)

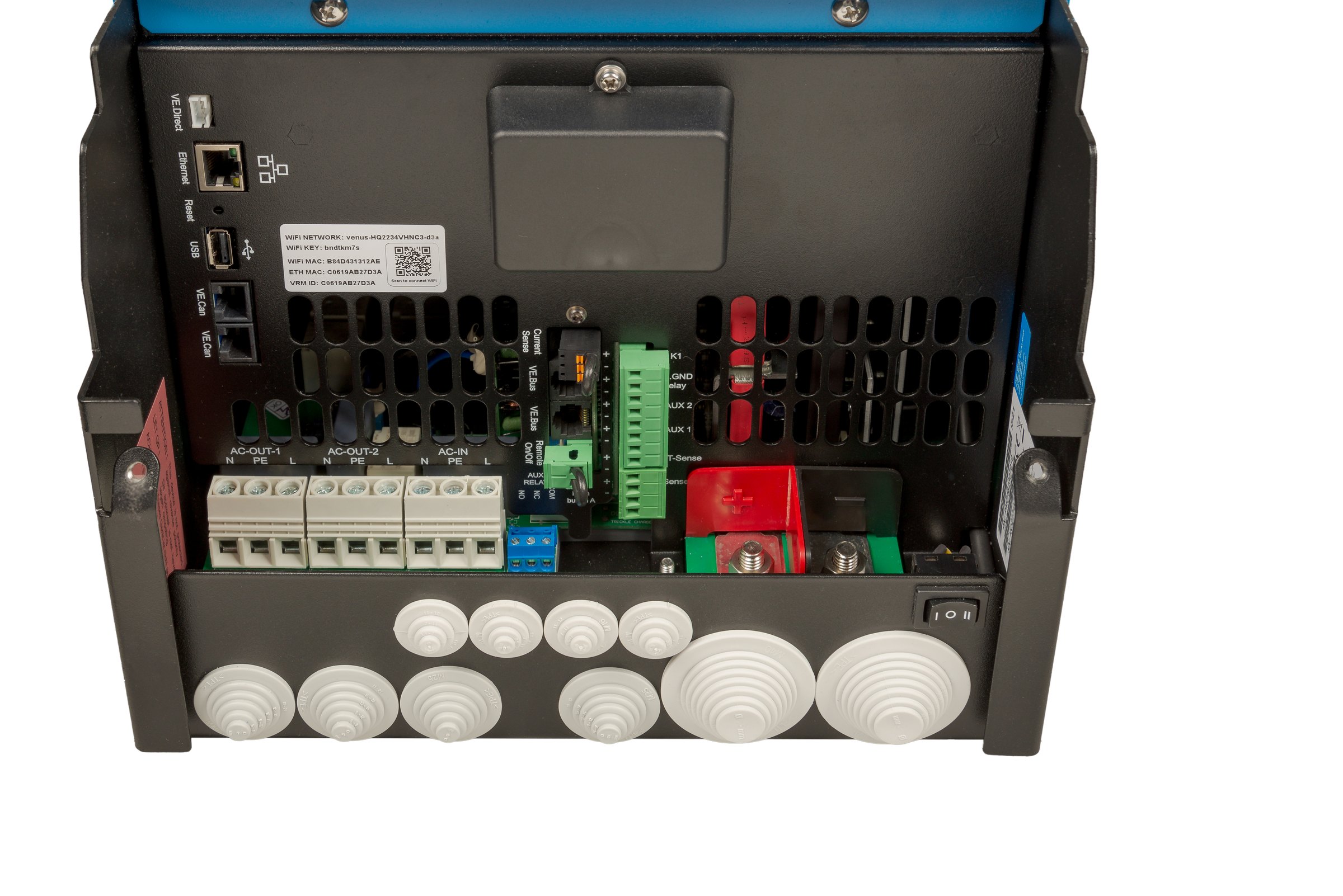

EasySolar-II GX connections view (48V 3000VA variant - terminal layout reference only)
Identity
| brand | Victron |
| category | inverters |
| ean | UNKNOWN |
| generation | EasySolar-II GX |
| manufacturer | Victron Energy |
| market_version | 230 VAC 50 Hz |
| model | EasySolar-II 48/5000/70-50 MPPT 250/100 GX |
| mpn | UNKNOWN |
| product_family | EasySolar-II GX (3000, 4k5, 5000, 6k5) |
| product_revision | UNKNOWN |
| product_status | active |
| region | EU / 230 V |
| release_year | UNKNOWN |
| sku | UNKNOWN |
Electrical
| ac_coupling_support | True |
| backup_eps_output_support | True |
| battery_support | True |
| battery_type | Lead-acid / Lithium-ion (lithium via VE.Bus BMS or BMS-Can on the integrated GX) |
| battery_voltage_class | LV |
| battery_voltage_max_v | 66 |
| battery_voltage_min_v | 38 |
| communication_can | True |
| communication_ethernet | True |
| communication_rs485 | UNKNOWN |
| communication_wifi | True |
| ct_support | Optional external AC current sensor, 100 A |
| generator_input_support | True |
| grid_certifications | ['EN-IEC 60335-1', 'EN-IEC 60335-2-29', 'EN-IEC 62109-1', 'EN-IEC 62109-2', 'EN 55014-1', 'EN 55014-2', 'EN-IEC 61000-3-2', 'EN-IEC 61000-3-3', 'IEC 61000-6-1', 'IEC 61000-6-2', 'IEC 61000-6-3'] |
| grid_export_control | Yes - ESS grid feed-in / zero-feed-in configured on the integrated GX (ESS assistant) |
| home_assistant_integration | UNKNOWN (community integrations exist over the GX Modbus-TCP/MQTT services; not documented by Victron in the sources fetched) |
| max_ac_power_kw | 9 |
| max_battery_charge_current_a |
170 combined (70 A AC charger + 100 A integrated MPPT charge current)
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — CHARGER 'Maximum battery charge current' = 70 A; SMARTSOLAR 'Maximum output current' = 100 A
|
| max_battery_charge_power_kw | UNKNOWN |
| max_battery_discharge_current_a | UNKNOWN |
| max_dc_voltage_v |
250
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — SMARTSOLAR CHARGE CONTROLLER 'Maximum PV open circuit voltage' = 250 V
|
| max_input_current_per_mppt_a | UNKNOWN (the datasheet gives the controller's maximum OUTPUT/charge current, 100 A, not a PV input current) |
| max_pv_input_power_w |
5800
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — SMARTSOLAR CHARGE CONTROLLER 'Maximum PV power' = 5800 W
|
| max_short_circuit_current_per_mppt_a | UNKNOWN |
| modbus_rtu | UNKNOWN |
| modbus_tcp | Yes - NATIVE on this model, because the GX device is built in. Modbus-TCP is a GX service and is disabled by default (Settings > Services > Modbus-TCP). This is the one unit in this batch that genuinely speaks Modbus-TCP without an external gateway. |
| mppt_max_voltage_v | 250 |
| mppt_min_voltage_v | UNKNOWN (SmartSolar 250/100-Tr; the EasySolar-II datasheet prints only 'Maximum PV open circuit voltage 250 V') |
| num_mppt |
1
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — SMARTSOLAR CHARGE CONTROLLER section - a single integrated 'MPPT 250/100-Tr' controller
|
| officially_supported_battery_brands | See Victron's official Battery Compatibility pages. EasySolar-II GX is not named individually there; the Pylontech page's scope statement is 'All Multi, MultiPlus, MultiGrid and Quattro are compatible' and this unit contains a MultiPlus-II inverter/charger. |
| phase_type | single-phase (stackable to split-phase / three-phase via VE.Bus; only one GX device permitted per system) |
| pv_inputs_per_mppt | 1 (single integrated SmartSolar MPPT 250/100-Tr tracker; PV connected on M6 solar bolts, not MC4) |
| rated_ac_power_kw | 4 |
| smart_meter_support | Yes via the integrated GX device (Victron energy meters) |
| startup_voltage_v | UNKNOWN |
| sunspec_support | UNKNOWN |
| topology | hybrid all-in-one: MultiPlus-II class inverter/charger + INTEGRATED SmartSolar MPPT 250/100-Tr solar charge controller + integrated GX device in one enclosure. Unlike other Victron inverter/chargers this model DOES have a PV input. |
Physical / mechanical
| bracket_dimensions_mm | N/A |
| cable_entry_positions | UNKNOWN |
| cable_gland_sizes | UNKNOWN |
| depth_mm | 253 |
| diameter_mm | N/A |
| din_rail_type | N/A |
| enclosure_material | aluminium |
| height_mm | 604 |
| housing_color | blue RAL 5012 |
| mounting_bolt_size | UNKNOWN (hooks and holes provided in the rear of the casing) |
| mounting_hole_diameter_mm | UNKNOWN |
| mounting_hole_spacing_mm | UNKNOWN |
| mounting_plate_dimensions_mm | UNKNOWN |
| mounting_type | ['wall'] |
| rack_units | N/A |
| screw_sizes | Battery M8 bolts; PV M6 bolts; AC screw terminals 16 mm2 |
| shipping_weight_kg | UNKNOWN |
| terminal_locations | Battery: M8 bolts. PV: M6 solar bolts. AC: screw terminals 16 mm2 for AC-in / AC-out-1 / AC-out-2 (each N, PE, L). |
| torque_specs | UNKNOWN for this model specifically (the EasySolar-II installation chapter does not print a torque table; the MultiPlus-II family figures are M4 1 Nm / M5 3 Nm / M6 5.5 Nm / M8 12 Nm) |
| weight_kg |
38.6
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — ENCLOSURE 'Weight' = 38.6 kg
|
| width_mm |
323
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — ENCLOSURE 'Dimensions' = 604 x 323 x 253 mm
|
Installation
| altitude_derating_note | UNKNOWN |
| clearance_bottom_mm | 100 |
| clearance_front_mm | UNKNOWN |
| clearance_left_mm | 100 |
| clearance_right_mm | 100 |
| clearance_top_mm | 100 |
| cooling_airflow_requirements | Fan-assisted; 10 cm free space all round |
| direct_sunlight_restriction | UNKNOWN |
| indoor_outdoor | indoor only (IP21) |
| installation_humidity_range | UNKNOWN |
| installation_temperature_range_c | UNKNOWN |
| max_installation_altitude_m | 2000 |
| minimum_wall_thickness_mm | UNKNOWN |
| mounting_orientation | Vertical mounting preferred for optimal cooling; the manual states the device can be mounted horizontally or vertically on a solid surface using the hooks and holes in the rear |
| orientation_allowed | ['vertical (wall)', 'horizontal'] |
| orientation_forbidden | ['UNKNOWN'] |
| surface_requirements | Solid surface such as concrete or masonry; dry, well-ventilated area as close as possible to the batteries |
| two_person_lift_required | UNKNOWN (38.6 kg) |
| ventilation_requirements | 'at least 10 cm around the product for cooling' |
Environment
| cooling_method | forced air (fan assisted) |
| corrosion_class | UNKNOWN |
| fan_replaceable | UNKNOWN |
| ik_rating | UNKNOWN |
| ip_rating |
IP21
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — ENCLOSURE 'Protection category' = IP21
|
| max_altitude_m | 2000 |
| nema_rating | UNKNOWN |
| noise_level_db | UNKNOWN |
| operating_temperature_c |
-20 to +45 (note: narrower than the standalone MultiPlus-II, because of the integrated MPPT and GX); output derates - 4000 W at 25 C, 3700 W at 40 C, 3000 W at 55 C
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — GENERAL 'Operating temp. range' = -20 to +45 C
|
| pollution_degree | UNKNOWN |
| relative_humidity | max 95 % (non-condensing) |
| salt_mist_resistance | UNKNOWN |
| storage_temperature_c | UNKNOWN |
| uv_resistance | UNKNOWN |
Interfaces & connectors
| ac_terminal_type | Screw terminals 16 mm2 |
| analog_inputs | UNKNOWN |
| auxiliary_power_output | N/A on 48 V models |
| backup_eps_terminal | AC-out-1 (uninterrupted); AC-out-2 (auxiliary, drops on battery operation, reconnects ~2 min after AC returns) |
| battery_terminal_type | M8 bolts |
| bluetooth | UNKNOWN |
| can | BMS-Can (integrated GX) |
| cellular | Optional via GX LTE 4G on the integrated GX USB port |
| cloud_api | VRM Portal (native, via the integrated GX) |
| digital_inputs | UNKNOWN |
| dry_contacts | Remote on-off |
| ethernet | Yes (integrated GX) |
| generator_start_contact | Yes, via the programmable relay |
| generator_terminal | AC-in accepts a generator; programmable relay can drive genset start/stop |
| local_api | GX Remote Console over Ethernet/Wi-Fi |
| modbus_rtu | UNKNOWN |
| modbus_tcp | Yes, native via the integrated GX (disabled by default) |
| mqtt | GX-device service (not documented in the fetched sources for this model) |
| ocpp | N/A |
| programmable_relay | Yes |
| protocol_notes |
Datasheet GENERAL row 'Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi'. The VE.Direct port and the integrated GX are what distinguish this unit from a plain MultiPlus-II: no external Cerbo GX is needed for VRM, Modbus-TCP or CAN-bus managed batteries.
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — GENERAL 'Interfaces: BMS-Can, USB, Ethernet, VE.Direct, Wi-Fi'; 'A GX device with a 2 x 16-character display'
|
| pv_connector_type |
M6 solar bolts (screw/bolt terminals - NOT MC4 connectors)
EasySolar-II 3kVA MPPT 250/70 GX, 5kVA MPPT 250/100 GX Datasheet (EN) — ENCLOSURE 'PV connection: M6 bolts'; manual installation chapter: 'M6 solar bolts'
|
| rapid_shutdown_interface | N/A |
| relay_outputs | Programmable relay - Yes |
| rs232 | UNKNOWN |
| rs485 | UNKNOWN |
| smart_load_output | AC-out-2 auxiliary output, 50 A |
| sunspec | UNKNOWN |
| usb | Yes (integrated GX) |
| wifi | Yes (integrated GX) |
| zigbee | UNKNOWN |
Controls & display
| audible_alarm | UNKNOWN |
| buttons | On / Off / Charger-only switch; GX display navigation |
| display_type | GX device display, 2 x 16 characters |
| leds | UNKNOWN |
| local_display | True |
| mobile_app | VRM app; VictronConnect |
| remote_display_option | GX Touch is not applicable (no HDMI on this integrated GX per the fetched sources - UNKNOWN); Digital Multi Control panel via VE.Bus |
| status_indicators | GX 2x16 character display + Remote Console |
| touchscreen | False |
| web_interface | GX Remote Console (LAN/Wi-Fi) and VRM Portal |
Protection
| afci | UNKNOWN |
| anti_islanding | UNKNOWN (datasheet defers to the certificate library) |
| ground_fault_protection | Ground relay (automatic N-PE bonding when no external AC source is present) |
| insulation_monitoring | UNKNOWN |
| integrated_breakers_fuses | UNKNOWN - an external DC fuse is required (200 A recommended for the 48/5000/70 model) |
| integrated_dc_switch | UNKNOWN (no PV DC isolator is documented in the fetched sources) |
| over_current | Inverter/charger protection key b (overload) |
| over_temperature | Inverter/charger protection key e |
| over_voltage | Inverter/charger protection key c (battery voltage too high) |
| overvoltage_category | UNKNOWN |
| protection_class | Safety class I, intended for a TN system; minimum 10 mm2 earth wire due to high leakage current |
| residual_current_monitoring | UNKNOWN - external earth-leakage protection required |
| reverse_polarity | UNKNOWN (the SmartSolar charge controller protection key a-e is printed but not expanded in the fetched extraction) |
| short_circuit | Inverter/charger protection key a (output short circuit) |
| surge_protection | UNKNOWN |
| under_voltage | Inverter/charger protection key d (battery voltage too low) |
Certifications
| emc | ['EN 55014-1', 'EN 55014-2', 'EN-IEC 61000-3-2', 'EN-IEC 61000-3-3', 'IEC 61000-6-1', 'IEC 61000-6-2', 'IEC 61000-6-3'] |
| grid_codes | ['UNKNOWN - not printed in the fetched datasheet extraction'] |
| other | [] |
| regional | ['CE (implied by EN-IEC compliance; CE mark not quoted verbatim in the fetched sources)'] |
| safety | ['EN-IEC 60335-1', 'EN-IEC 60335-2-29', 'EN-IEC 62109-1', 'EN-IEC 62109-2'] |
Warranty & service
| conditions | '5-year standard warranty' with 'global repair service' (EasySolar-II GX product page) |
| cycle_life | N/A |
| design_life_years | UNKNOWN |
| extended_options_years | UNKNOWN |
| fan_replaceable | UNKNOWN |
| field_replaceable_parts | ['UNKNOWN'] |
| fuse_replaceable | UNKNOWN |
| service_intervals | UNKNOWN |
| standard_years | 5 |
Packaging & logistics
| gross_weight_kg | UNKNOWN |
| package_depth_mm | UNKNOWN |
| package_height_mm | UNKNOWN |
| package_width_mm | UNKNOWN |
| transport_restrictions | UNKNOWN |
| units_per_pallet | UNKNOWN |
Documents
Documented compatibility
Documented pairings only. A product absent here has no fetched document naming the pairing — that is not a statement that it fails.
inverter_battery
Pylontech US3000C
COMPATIBLEmanufacturer-documented
Victron Energy official battery compatibility page for Pylontech, https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom (fetched 2026-09-01)
Pylontech Force H2
COMPATIBLEofficially-verified
Victron Energy official battery compatibility page for Pylontech, https://www.victronenergy.com/live/battery_compatibility:pylontech_phantom (fetched 2026-09-01)
Pytes V5 / V5-alpha (printed as V5° / V5°α)
COMPATIBLEofficially-verified
Pytes Inverter Compatibility List V.20230819, https://www.pytesess.com/ueditor/php/upload/file/20240705/1720170604646137.pdf (fetched 2026-09-01)
Pytes E-Box 48100R
COMPATIBLEofficially-verified
Pytes Inverter Compatibility List V.20230819, https://www.pytesess.com/ueditor/php/upload/file/20240705/1720170604646137.pdf (fetched 2026-09-01)
Recorded conflicts
installation.ac_input_max_breaker_a Resolved — imported outcome unspecified
32 — EasySolar-II GX manual installation chapter, AC-in: 'Maximum 32A fuse/circuit breaker required' and PowerAssist '32 + 13 = 45 A' (text written for the 3 kVA variant)
50 — EasySolar-II GX datasheet, INVERTER/CHARGER: 'Transfer switch 50 A', 'Maximum AC input current 50 A' for the 48/5000/70-50 column
the shared installation chapter quotes the 3 kVA (32 A) figures; the 48/5000/70-50 variant is a 50 A transfer-switch machine. Use 50 A for this model.
installation.ac_input_max_breaker_a Resolved — imported outcome unspecified
32 — EasySolar-II GX manual installation chapter, AC-in: 'Maximum 32A fuse/circuit breaker required' and PowerAssist '32 + 13 = 45 A' (text written for the 3 kVA variant)
50 — EasySolar-II GX datasheet, INVERTER/CHARGER: 'Transfer switch 50 A', 'Maximum AC input current 50 A' for the 48/5000/70-50 column
the shared installation chapter quotes the 3 kVA (32 A) figures; the 48/5000/70-50 variant is a 50 A transfer-switch machine. Use 50 A for this model.
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Battery cable cross-section (48/5000/70) | 70 mm2 per positive and negative terminal (0-5 m); 2x70 mm2 (5-10 m) |
| Charge voltage absorption / float / storage | 57,6 V / 55,2 V / 52,8 V (both the AC charger and the MPPT) |
| Cont. output power at 25 C (apparent) | 5000 VA |
| Cont. output power at 40 C / 55 C | 3700 W / 3000 W |
| Earthing | safety class I device intended for a TN system; uninterruptible grounding with minimum 10 mm2 wire due to high leakage current |
| Integrated solar charge controller model | MPPT 250/100-Tr |
| Maximum apparent feed-in power | 4400 W / 5000 VA |
| Maximum efficiency (solar charge controller) | 99 % |
| One GX device per system | 'only one GX device' is permitted when paralleling multiple units |
| Recommended DC fuse (48/5000/70) | 200 A |
| Recommended battery capacity (48/5000/70) | 200-800 Ah |
| Self-consumption (solar charge controller) | 20 mA |
| Transfer switch / Maximum AC input current / Auxiliary output | 50 A / 50 A / 50 A |
| Zero load power / AES / Search | 18 W / 12 W / 2 W |
| conflict.status[installation.ac_input_max_breaker_a] | resolved (model-specific datasheet column preferred) |
