Identity

brand	Deye
category	microinverters
ean	UNKNOWN
generation	G4
manufacturer	Deye (Ningbo Deye Inverter Technology Co., Ltd.)
market_version	EU 220/230 V 50/60 Hz

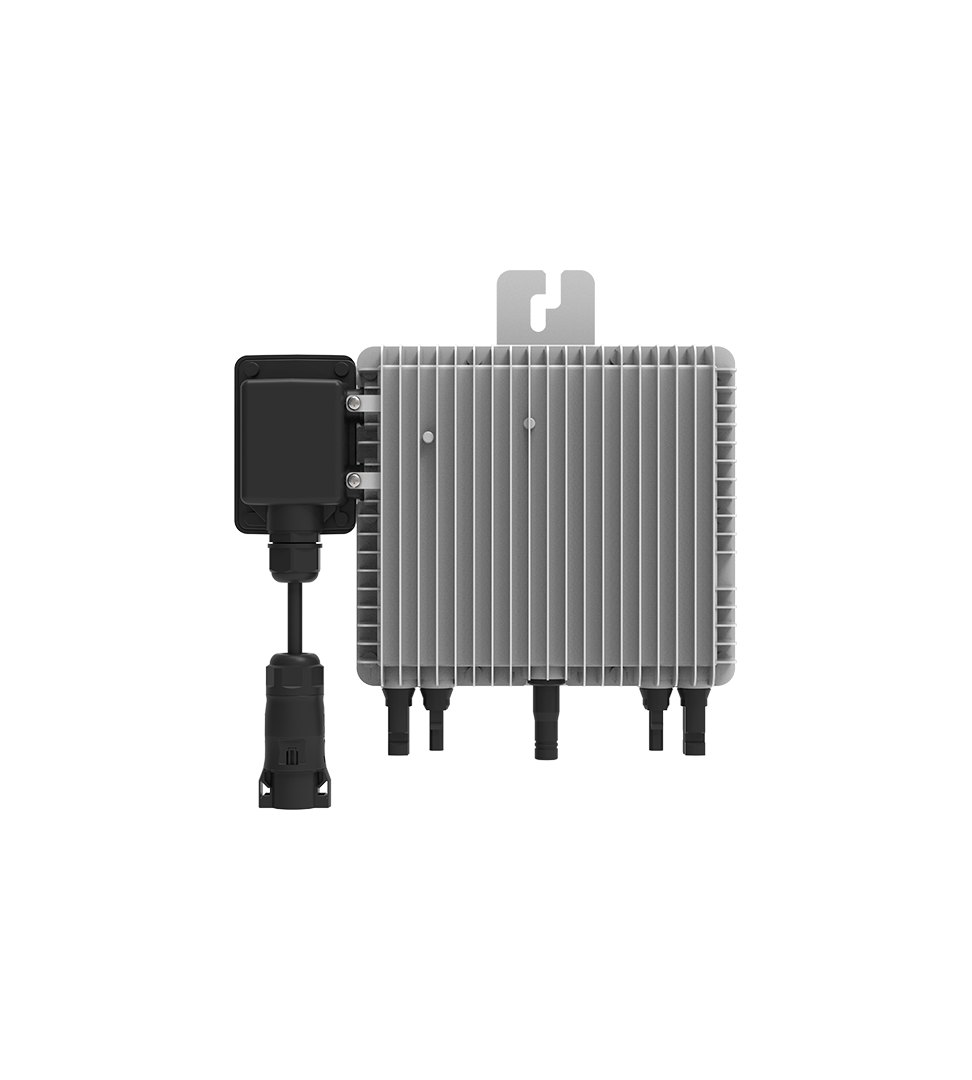

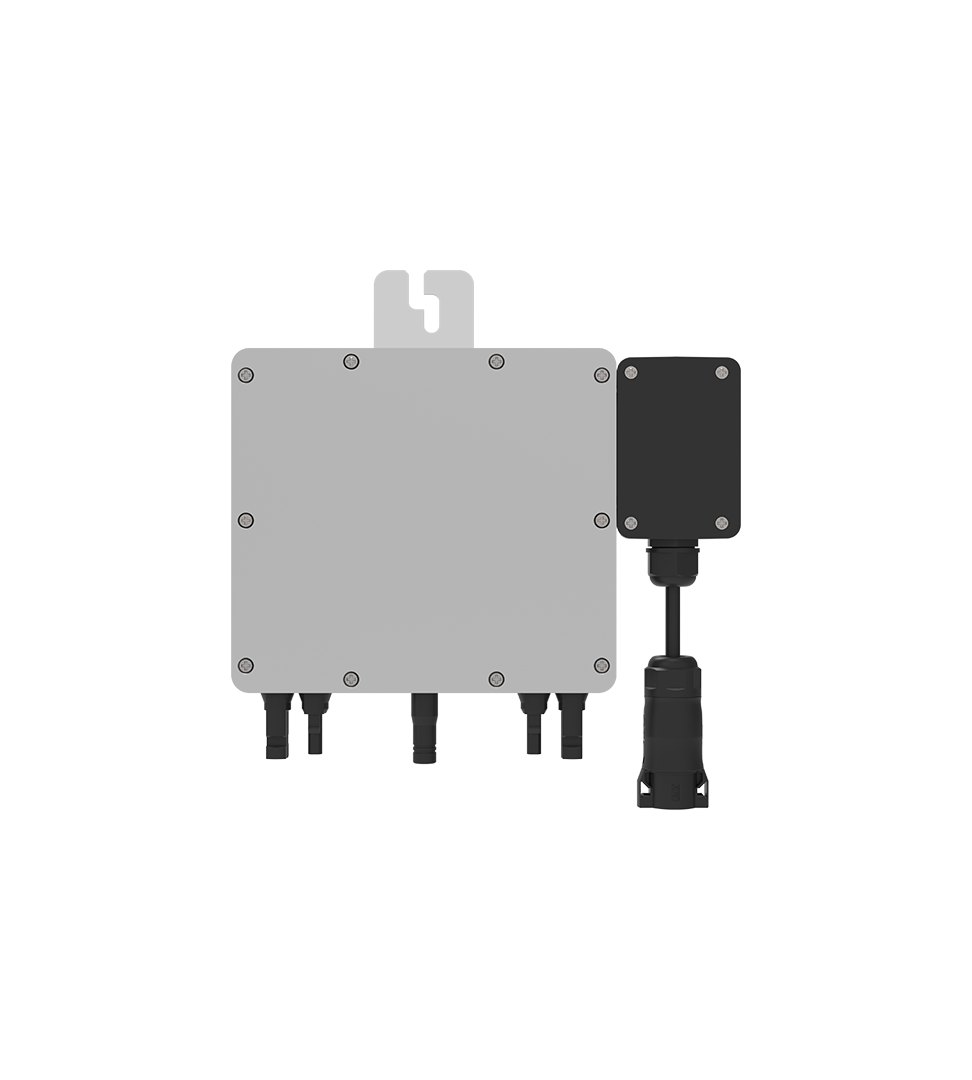

model	SUN-M60/80/100G4-EU-Q0
mpn	UNKNOWN
product_family	SUN-M60/80/100G4-EU-Q0
product_status	active
region	EU
sku	UNKNOWN

Electrical

ac_coupling_compatibility	UNKNOWN - no fetched Deye document pairs this microinverter with any hybrid inverter for AC coupling
ac_rated_power_w	600 (M60) / 800 (M80) / 1000 (M100)
grid_profiles	['IEC 61727', 'IEC 62116', 'CEI 0-21', 'EN 50549', 'NRS 097', 'RD 140', 'UNE 217002', 'VDE-AR-N 4105', 'G98']
input_to_mppt_mapping	2 physical DC inputs -> 2 independent MPPTs, 1:1. Official row: 'No. of MPP Trackers/No. of String per MPP Tracker \| 2/1'. Per-input currents are printed as '13+13' and '19.5+19.5', confirming one input per tracker.
max_dc_input_power_w	Deye row 'Max. PV Input Power(W)': 210-420 (M60, 2 Pieces) / 210-560 (M80, 2 Pieces) / 210-700 (M100, 2 Pieces) - per-module power window x 2 modules
max_dc_voltage_v	60 SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table) — row 'Max. PV Input Voltage(V)'
max_input_current_a	13 per input (row 'Max. Operating PV Input Current(A) \| 13+13') SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table) — row 'Max. Operating PV Input Current (A)'
max_short_circuit_current_a	19.5 per input (row 'Max. Input Short-Circuit Current (A) \| 19.5+19.5') SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table) — row 'Max. Input Short Circuit Current (A)'
max_units_per_ac_branch	8 (M60) / 6 (M80) / 5 (M100)
monitoring_protocol	built-in WiFi datalogger -> Deye Cloud / SOLARMAN (no external DTU or gateway required)
mppt_range_v	25-55
num_mppt	2 SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table) — row 'No. of MPP Trackers/No. of String per MPP Tracker'
physical_dc_inputs	2
supported_module_power_range_w	Deye row 'Max. PV Input Power(W)': 210-420 (M60, 2 Pieces) / 210-560 (M80, 2 Pieces) / 210-700 (M100, 2 Pieces) - per-module power window x 2 modules

Physical / mechanical

cable_entry_positions	UNKNOWN
depth_mm	40
enclosure_material	UNKNOWN
height_mm	190
housing_color	UNKNOWN
mounting_bolt_size	UNKNOWN
mounting_hole_spacing_mm	UNKNOWN
mounting_type	['rooftop', 'module racking rail']
note	Cabinet size stated 'Excluding connectors and brackets'
torque_specs	AC terminal 1.0 N.m for 4.0 mm2 (10 AWG) TC-ER cable (G4 manual p.13); DC torque not published
weight_kg	3
width_mm	280.5 SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table) — row 'Cabinet Size (WHD)[mm]'

Installation

clearance_bottom_mm	13 (manual: 'Allow a minimum of 1.3 cm between the roof and the bottom of the Microinverter to allow proper air flow')
direct_sunlight_restriction	manual: 'Do not place the inverters (including DC and AC connectors) where exposed to the sun, rain or snow'
indoor_outdoor	outdoor (IP67)
max_installation_altitude_m	2000
mounting_orientation	under the PV module on the racking; not specified as orientation-restricted
surface_requirements	'Mount one Microinverter at each of these locations using hardware recommended by your module racking vendor' - Deye publishes no bracket part number
two_person_lift_required	False

Environment

cooling_method	natural cooling (fanless)
corrosion_class	UNKNOWN
fan_replaceable	n/a (fanless)
ik_rating	UNKNOWN
ip_rating	IP 67
max_altitude_m	2000
nema_rating	UNKNOWN
noise_level_db	<= 25
operating_temperature_c	-40 to +65 (>45 derating)
pollution_degree	UNKNOWN
relative_humidity	0-100%
salt_mist_resistance	UNKNOWN
storage_temperature_c	UNKNOWN
uv_resistance	UNKNOWN

Interfaces & connectors

ac_terminal_type	pre-fitted TC-ER AC lead; Bus AC connector or T-connector system (see accessories)
bluetooth	UNKNOWN
can	UNKNOWN
cellular	False
cloud_api	Deye Cloud / SOLARMAN (pro.solarmanpv.com, home.solarmanpv.com)
ethernet	False
local_api	UNKNOWN (SOLARMAN logger web page at http://10.10.100.254 exists for the built-in datalogger, admin/admin - configuration only, not a documented data API)
modbus_rtu	UNKNOWN
modbus_tcp	UNKNOWN
mqtt	UNKNOWN
protocol_notes	Grid connection form L/N/PE - single phase only. Deye publishes NO three-phase microinverter.
pv_connector_type	UNKNOWN (connector brand/type is not named in any fetched Deye microinverter document)
rs232	UNKNOWN
rs485	UNKNOWN
sunspec	UNKNOWN
usb	False
wifi	built-in WiFi module, 2.400-2.4835 GHz, 20 dBm +/-2 dBm (row 'Communication Interface \| Wi-Fi')
zigbee	UNKNOWN (Zigbee/PLC exist on the older G3 generation and on the MECD gateway, not stated for G4)

Controls & display

audible_alarm	UNKNOWN
buttons	none
display_type	none
leds	status LED (GFDI fault indicated by 4x red flashes per manual)
local_display	False
mobile_app	SOLARMAN Smart (owner) / SOLARMAN Business (installer); Deye Cloud
touchscreen	False
web_interface	built-in logger local web page http://10.10.100.254 (default admin/admin)

Protection

afci	UNKNOWN
anti_islanding	YES (row 'Anti-islanding Protection')
ground_fault_protection	UNKNOWN
insulation_monitoring	YES (row 'Insulation Impedance Detection')
over_current	YES (row 'AC Output Overcurrent Protection')
over_temperature	YES (row 'Thermal Protection')
over_voltage	YES (row 'AC Output Overvoltage Protection')
overvoltage_category	OVC II(DC), OVC III(AC)
protection_class	UNKNOWN
rapid_shutdown	UNKNOWN (Deye does not claim rapid shutdown for this family; it does for SUN-M220/225G4 and SUN-S130-225G4)
reverse_polarity	YES (row 'DC Reverse Polarity Protection')
short_circuit	YES (row 'AC Output Short Circuit Protection')
surge_protection	TYPE II (AC)

Certifications

emc	['IEC/EN 61000-6-1', 'IEC/EN 61000-6-2', 'IEC/EN 61000-6-3', 'IEC/EN 61000-6-4', 'EN 55011:2016+A1+A11+A2', 'EN 62920:2017+A11+A1', 'EN IEC 62311:2020', 'CISPR 11:2015+A1+A2', 'EN 300328 V2.2.2:2019', 'EN 301489-1 V2.2.3:2019', 'EN 301489-17 V3.2.4:2020']
grid_codes	['IEC 61727', 'IEC 62116', 'CEI 0-21', 'EN 50549', 'NRS 097', 'RD 140', 'UNE 217002', 'VDE-AR-N 4105', 'G98']
other	['RED 2014/53/EU', 'RoHS 2011/65/EU']
regional	['CE']
safety	['IEC/EN 62109-1', 'IEC/EN 62109-2', 'EN 62109-1:2010', 'EN 62109-2:2011']

Warranty & service

conditions	product page row 'Warranty [year]'
design_life_years	UNKNOWN
field_replaceable_parts	[]
standard_years	15

Documents

certificate {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Certificate VDE-AR-N 4105 (Germany) — located, not retrieved rev UNKNOWN

certificate {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Certificate VDE-AR-N 4105 NS protection — located, not retrieved rev UNKNOWN

certificate {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} EU Declaration of Conformity SUN-M60-100G4-EU-Q0 — located, not retrieved rev UNKNOWN

datasheet Datasheet SUN-M60/80/100G4-EU-Q0 (2025-04-27) rev 250427

datasheet {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Datasheet SUN-M60/80/100G4-EU-Q0 (30240102201467) — located, not retrieved rev 20250513

datasheet SUN-M60/80/100G4-EU-Q0 product page (HTML technical specification table)

installation-manual {# Located but never retrieved: listed, but deliberately not linked, and it backs no stored value. #} Installation / User Manual SUN-M60-100G4-EU-Q0 (30240301003032) — located, not retrieved rev 20250701

installation-manual Installation / User Manual Ver:1.6 SUN-M60-100G4-EU-Q0 rev Ver 1.6 (2025-08-19)

Recorded conflicts

max_input_current_a vs max_short_circuit_current_a (row assignment) Resolved — imported outcome unspecified

operating 13+13 A, Isc 19.5+19.5 A — Deye product page spec table (2026-09-02)

Isc 13x2 A, operating 19.5x2 A — Installation/User Manual Ver1.6 (2025-08-19), as extracted

PDF extraction transposed the two adjacent rows; Isc must exceed operating current, so the product-page assignment is used
