AIKO Solar AIKO-A485-MCE54Mb
Official manufacturer GLOBAL verified Sept. 22, 2026
Unresolved safety-relevant conflict
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.
Two sources give different figures for a value on this product and nobody has resolved it. The specifications below are shown as recorded, but this product must not be treated as verified for engineering purposes until the conflict is closed.

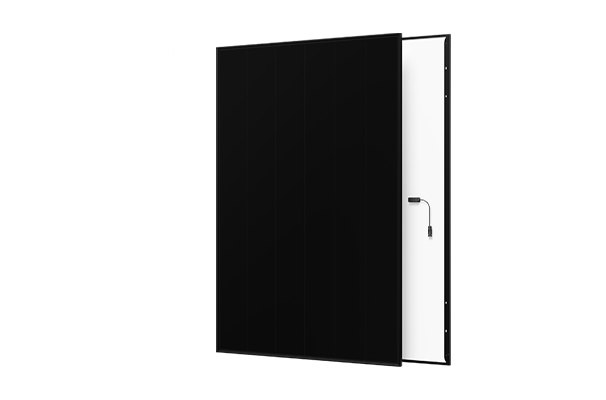

Product image on the official NEOSTAR 3S54 Mono-Glass (AIKO-A-MCE54Mb) product page; three-quarter view of the full-black module with the rear junction box and cable visible.
Identity
| category | pv_modules |
| generation | Neostar 3S (ABC gen 3) disputed |
| manufacturer | AIKO Solar |
| market_version | IEC (DC1500V) |
| model | AIKO-A485-MCE54Mb |
| mpn | AIKO-A485-MCE54Mb |
| product_family | Neostar 3S54 AIKO-A-MCE54Mb 460-485 W |
| product_page | https://aikosolar.com/en/products/neostar-3s54-mono-glass/ |
| product_status | active disputed |
| region | global |
| release_year | 2024 |
| series | Neostar 3S |
| sku | — |
Electrical
| annual_degradation_percent |
0.35
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| application_class | — |
| bifacial | False |
| bifaciality_factor_pct | — |
| cable_cross_section_mm2 |
4.0
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| cable_length_negative_mm |
1200
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| cable_length_positive_mm |
1200
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| cell_count |
108
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| cell_technology |
N-type ABC (All Back Contact) monocrystalline, 108 cells 6x18, mono-glass (Neostar 3S54)
disputed
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet — 'Cell type N-Type ABC', 'No. of Cells 108(6*18)'
|
| cell_type |
N-Type ABC
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| dimensions_mm | 1762x1134x30 |
| electrical_extra | {'power_tolerance': '0~+3%', 'power_bins_w': [460, 465, 470, 475, 480, 485], 'protection_class': 'Class II'} |
| extra | {'power_bins_w': [460, 465, 470, 475, 480, 485], 'power_bin_table': [{'pmax_w': 460, 'model': 'AIKO-A460-MCE54Mb', 'voc_v': 40.4, 'vmp_v': 33.8, 'isc_a': 14.58, 'imp_a': 13.62, 'efficiency_pct': 23.0}, {'pmax_w': 465, 'model': 'AIKO-A465-MCE54Mb', 'voc_v': 40.5, 'vmp_v': 33.9, 'isc_a': 14.64, 'imp_a': 13.72, 'efficiency_pct': 23.3}, {'pmax_w': 470, 'model': 'AIKO-A470-MCE54Mb', 'voc_v': 40.6, 'vmp_v': 34.0, 'isc_a': 14.7, 'imp_a': 13.83, 'efficiency_pct': 23.5}, {'pmax_w': 475, 'model': 'AIKO-A475-MCE54Mb', 'voc_v': 40.7, 'vmp_v': 34.1, 'isc_a': 14.76, 'imp_a': 13.94, 'efficiency_pct': 23.8}, {'pmax_w': 480, 'model': 'AIKO-A480-MCE54Mb', 'voc_v': 40.8, 'vmp_v': 34.2, 'isc_a': 14.82, 'imp_a': 14.04, 'efficiency_pct': 24.0}, {'pmax_w': 485, 'model': 'AIKO-A485-MCE54Mb', 'voc_v': 40.9, 'vmp_v': 34.3, 'isc_a': 14.88, 'imp_a': 14.15, 'efficiency_pct': 24.3}], 'nmot_bin_table': [{'pmax_w': 349, 'model': 'AIKO-A460-MCE54Mb', 'voc_v': 38.33, 'vmp_v': 32.07, 'isc_a': 11.78, 'imp_a': 10.89}, {'pmax_w': 352, 'model': 'AIKO-A465-MCE54Mb', 'voc_v': 38.42, 'vmp_v': 32.16, 'isc_a': 11.83, 'imp_a': 10.97}, {'pmax_w': 356, 'model': 'AIKO-A470-MCE54Mb', 'voc_v': 38.52, 'vmp_v': 32.26, 'isc_a': 11.88, 'imp_a': 11.05}, {'pmax_w': 360, 'model': 'AIKO-A475-MCE54Mb', 'voc_v': 38.61, 'vmp_v': 32.35, 'isc_a': 11.93, 'imp_a': 11.14}, {'pmax_w': 364, 'model': 'AIKO-A480-MCE54Mb', 'voc_v': 38.71, 'vmp_v': 32.45, 'isc_a': 11.97, 'imp_a': 11.22}, {'pmax_w': 367, 'model': 'AIKO-A485-MCE54Mb', 'voc_v': 38.8, 'vmp_v': 32.54, 'isc_a': 12.02, 'imp_a': 11.31}], 'cell_count': '108', 'cell_layout': '6*18', 'fire_type': 'IEC Class C'} |
| first_year_degradation_percent |
1.0
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| imp_a |
14.15
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| isc_a |
14.88
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| junction_box_ip_rating |
IP68
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| max_reverse_current_a | — |
| max_series_fuse_rating_a |
25
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| max_system_voltage_label | DC1500V |
| max_system_voltage_v |
1500
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| mechanical_load_front_pa |
5400
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| mechanical_load_rear_pa |
2400
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| module_efficiency_pct | 24.3 |
| module_type |
glass-backsheet
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| nmot | {'pmax_w': 367, 'voc_v': 38.8, 'vmp_v': 32.54, 'isc_a': 12.02, 'imp_a': 11.31, 'conditions': 'NOCT: AM1.5 800W/m2 20 degC 1m/s', 'note': 'Values are the top power bin (AIKO-A485-MCE54Mb) row of the datasheet NOCT table.'} |
| nmot_c | — |
| official_manual_url |
https://pure-electric.com.au/sites/default/files/2025-11/Aiko%20Neostar%203P%20490W%20Install%20Manual.pdf
AIKO PV Module Installation Manual 2025
|
| pmax_w | 485 |
| power_tolerance | 0~+3% |
| protection_class | Class II (printed: ClassII) |
| rated_power_w |
485
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| stc_conditions | AM1.5 1000W/m2 25 degC (printed: AM1.5 1000W/m2 25C) |
| temp_coeff_isc | 0.05 %/degC |
| temp_coeff_isc_pct_per_c | 0.05 |
| temp_coeff_pmax | -0.26 %/degC |
| temp_coeff_pmax_pct_per_c | -0.26 |
| temp_coeff_voc | -0.22 %/degC |
| temp_coeff_voc_pct_per_c | -0.22 |
| vmp_v |
34.3
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| voc_v |
40.9
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet — STC table, AIKO-A485-MCE54Mb row
|
| warranty_performance_years |
30
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| weight_kg | 21.0 |
Physical / mechanical
| backsheet | High weather resistant backsheet |
| bypass_diodes | 3 |
| cable_cross_section_mm2 | 4 mm2 (IEC) / 12 AWG (UL) disputed |
| cable_length_mm | +-1200 mm disputed |
| connector_type | MC4-Evo2 |
| depth_mm | 30 |
| dimensions_mm | 1762*1134*30mm |
| enclosure_material | Black anodized aluminum frame |
| frame | Black anodized aluminum |
| frame_colour | black |
| glass | 3.2 mm tempered glass |
| glass_construction | single glass with high weather-resistant backsheet disputed |
| glass_thickness_mm | 3.2 |
| height_mm | 30 |
| junction_box | IP68 disputed |
| junction_box_diodes | 3 |
| length_mm |
1762
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| mounting_type | ['rooftop', 'ground'] |
| weight_kg | 21 kg +-3% disputed |
| weight_printed | 21kg+/-3% |
| width_mm |
1134
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
Installation
| clamp_requirements | — |
| grounding | — |
| max_installation_altitude_m | — |
| mounting_methods | — |
Environment
| ammonia | — |
| fire_class | IEC Class C |
| fire_rating | IEC Class C |
| hail | 25 mm diameter hail at 23 m/s |
| hail_rating |
25 mm diameter hail at 23 m/s
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet — '25 mm diameter hail at 23 m/s'
|
| max_static_load_front_pa | 5400 |
| max_static_load_rear_pa | 2400 |
| operating_temperature_c | -40 to +85 |
| operating_temperature_max_c |
85
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| operating_temperature_min_c |
-40
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| pid | — |
| salt_mist | — |
| snow_load | — |
| temperature_coefficient_isc_percent_c |
0.05
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| temperature_coefficient_pmax_percent_c |
-0.26
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| temperature_coefficient_voc_percent_c |
-0.22
Neostar 3S54 Mono-glass Module AIKO-A-MCE54Mb 460-485 W Datasheet
|
| wind_load | — |
Certifications
| other | ['IEC Class C fire rating and Class II protection stated; full certification list not printed in the fetched datasheet'] |
| safety | [] |
| standards | ['UNKNOWN'] |
Warranty & service
| annual_degradation_pct | <=0.35 disputed |
| end_of_warranty_output_pct | 90.6 |
| first_year_degradation_pct | <=1 disputed |
| note | Datasheet's degradation curve label was read as 90.6% at year 30, which is inconsistent with the printed <=1% + <=0.35%/yr schedule (88.85%). Left UNKNOWN rather than guessed; see raw_discovered. |
| performance_years | 30 |
| product_years | — |
| retained_power_at_year | 30 |
| retained_power_end_pct | — |
| standard_years | — |
Packaging & logistics
| units_per_20gp_container | 222 |
| units_per_40hc_container | 962 |
| units_per_pallet | 37 |
Documents
datasheet
Neostar 3S54 193 AIKO-A-MCE54Mb 480-495W 1762x1134x30 (Neostar Pro 3S54 product page)
rev 202604 V2.1 EN
datasheet
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
Neostar 3S54_193 — AIKO-A-MCE54Mb 460-475 W, 1762x1134x30 — Datasheet V2.1 (202604) — located, not retrieved
rev V2.1 (2026-04)
installation_manual
AIKO PV Module Installation Manual 2025
product-page
NEOSTAR 3S54 Mono-Glass — official product page
warranty
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
N-Type ABC Module Warranty - Full-black Gen-3 Infinite Modules 1.1.1 EN — located, not retrieved
Recorded conflicts
environment.operating_temperature_c Review required
-40 to +85 — Neostar 3S54 datasheet DSDr_EN_2405_V1.5
-40 to +70 — Neostar 3S54 datasheet 202604 V2.1
electrical.imp_a Review required
14.15 — Neostar 3S54 datasheet DSDr_EN_2405_V1.5 (460-485 W), A485 row
14.02 — Neostar 3S54 datasheet 202604 V2.1 (480-495 W), A485 row
electrical.isc_a Review required
14.88 — Neostar 3S54 datasheet DSDr_EN_2405_V1.5 (460-485 W), A485 row
14.84 — Neostar 3S54 datasheet 202604 V2.1 (480-495 W), A485 row
electrical.voc_v Review required
40.9 — Neostar 3S54 datasheet DSDr_EN_2405_V1.5 (460-485 W), A485 row
41.0 — Neostar 3S54 datasheet 202604 V2.1 (480-495 W), A485 row
physical.weight_kg Review required
21 kg +-3% — stored value
21.0 — row 'Weight' (single row, all power classes): 21kg+/-3%
Detected during import pv-builder-2026-09-batch01
physical.height_mm Resolved — accepted incoming value
1762 — stored value
30 — row 'Dimension' (single row, all power classes): 1762*1134*30mm (third figure is frame thickness)
Detected during import pv-builder-2026-09-batch01
electrical_extra.power_bins_w Review required
460-485 W (460/465/470/475/480/485) — Neostar 3S54 datasheet DSDr_EN_2405_V1.5
460-475 W (460/465/470/475) — Neostar 3S54 datasheet 202604 V2.1 (current, linked from the product page)
warranty.annual_degradation_pct Review required
<=0.35 — stored value
0.35 — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
warranty.first_year_degradation_pct Review required
<=1 — stored value
1.0 — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
physical.cable_cross_section_mm2 Review required
4 mm2 (IEC) / 12 AWG (UL) — stored value
4.0 — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
physical.cable_length_mm Review required
+-1200 mm — stored value
±1200mm — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
physical.junction_box Review required
IP68 — stored value
IP68, 3 bypass diodes — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
physical.glass_construction Review required
single glass with high weather-resistant backsheet — stored value
single glass (mono-glass) — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
physical.weight_kg Review required
21 kg +-3% — stored value
21.0 — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
electrical.cell_technology Review required
N-type ABC (All Back Contact) monocrystalline, 108 cells 6x18, mono-glass (Neostar 3S54) — stored value
N-Type ABC (All Back Contact) monocrystalline, 108 cells 6*18 — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
identity.product_status Review required
active — stored value
superseded — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
identity.generation Review required
Neostar 3S (ABC gen 3) — stored value
Neostar 3S (N-type ABC Gen3 / ABC INFINITE), MCE platform — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
identity.product_family Resolved — kept current value
Neostar 3S54 AIKO-A-MCE54Mb 460-485 W — stored value
Neostar 3S54 Mono-Glass, AIKO-A-MCE54Mb 460-485 W (2024 datasheet range) — incoming package
Detected during import pv-batch2-full-portfolio-2026-09-05
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
| Current Neostar 3S54 (202604 V2.1) STC table, 460-475 W | 460W 40.50/34.10/14.66/13.50 23.0%; 465W 40.60/34.20/14.69/13.60 23.3%; 470W 40.70/34.30/14.72/13.71 23.5%; 475W 40.80/34.40/14.76/13.81 23.8% |
| Linear performance warranty curve endpoint (2024 sheet) | 90.6% |
| Manufacturer name printed on datasheet | AIKO |
| identity.region_as_researched | GLOBAL |
