Knowledge Base ›
Smart Meters
Manufacturer documented
GLOBAL
verified Sept. 20, 2026

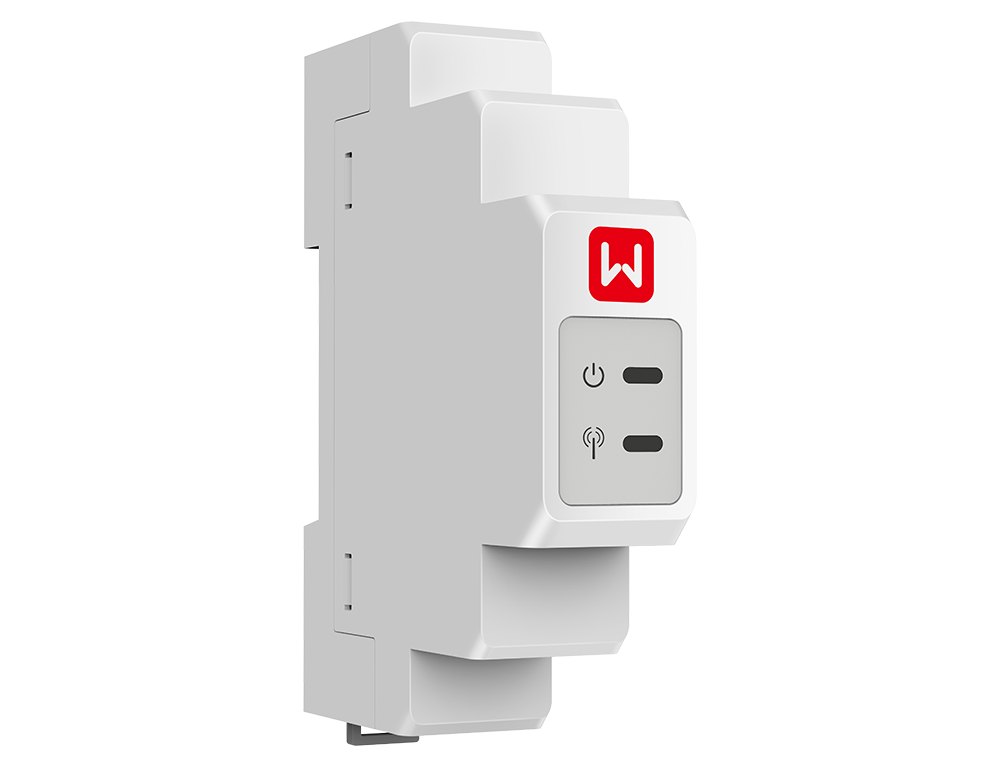

PRODUCT PHOTO · GoodWe

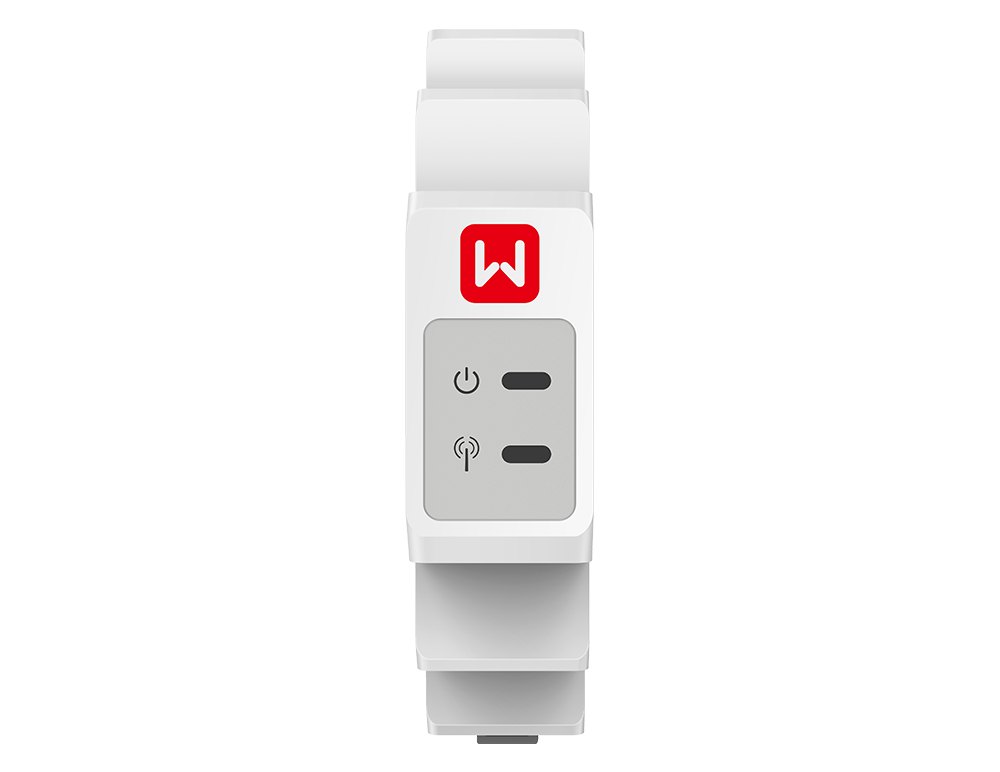

PRODUCT PHOTO · GoodWe
PRODUCT PHOTO · GoodWe
Identity
brand
GoodWe
category
smart_meters
ean
—
firmware
{'documented_version': 'UNKNOWN', 'constraints': 'UNKNOWN'}
generation
—
manufacturer
GoodWe
manufacturer_key
goodwe
market_version
global EN documentation; residential single-phase meter with one 120 A CT
model
GMK110
model_key
gmk110
mpn
GMK110
product_family
GoodWe Smart Meter
product_status
active
region
GLOBAL
release_year
—
series
GMK110
sku
—
Electrical
accuracy_class
Class 1 (IEC 62053-21) / Class B (EN 50470-3)
active_energy_accuracy_class
1
bidirectional_metering
True
current_transformer
120A: 40mA
measurement_type
Current Transformer (CT)
nominal_frequency_hz
50 / 60
number_of_current_transformers
1
operating_voltage_vac
85 ~ 288
phase_count
1
power_consumption_w
<=5
reactive_energy_accuracy_class
2
supported_grid_types
1P2W
voltage_current_accuracy_class
1
Physical / mechanical
depth_mm
67
dimensions_mm
19 x 85 x 67
display
2 LED
enclosure_material
—
height_mm
85
housing
1 module
mounting
DIN rail
weight_g
50
width_mm
19
Installation
cable_requirements
—
commissioning
—
installation_angle
—
mounting_clearances
—
torque
—
Environment
ingress_protection
IP20
max_altitude_m
3000
operating_temperature_c
-30 ~ +60
overvoltage_category
—
pollution_degree
—
protective_class
—
relative_humidity_pct
0 ~ 95%
storage_temperature_c
-30 ~ +70
Interfaces & connectors
app
—
communication
['RS485']
communication_distance_m
1000
dry_contact
—
meter_interface
—
monitoring_portal
—
protocols
[]
Warranty & service
conditions
No warranty term is printed on the GMK110 datasheet or product page.
extension_options
—
standard_years
—
Documents
other
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe GMK110 download index — located, not retrieved
rev UNKNOWN
user-manual
{# Located but never retrieved: listed, but deliberately not linked, and it
backs no stored value. #}
GoodWe GMK110 User Manual — located, not retrieved
rev UNKNOWN
Additional documented parameters
Recorded verbatim from the source; no schema field exists for these yet.
Communication Distance (m) 1000 Current Transformer Ratio 120A: 40mA Datasheet footnote All pictures shown are for reference only. Actual appearance may vary. Datasheet footnote * Supports input voltage up to 1.1Un. Housing 1 module Operating Voltage (Vac) 85 ~ 288 User Interface 2 LED identity.region_as_printed global EN
